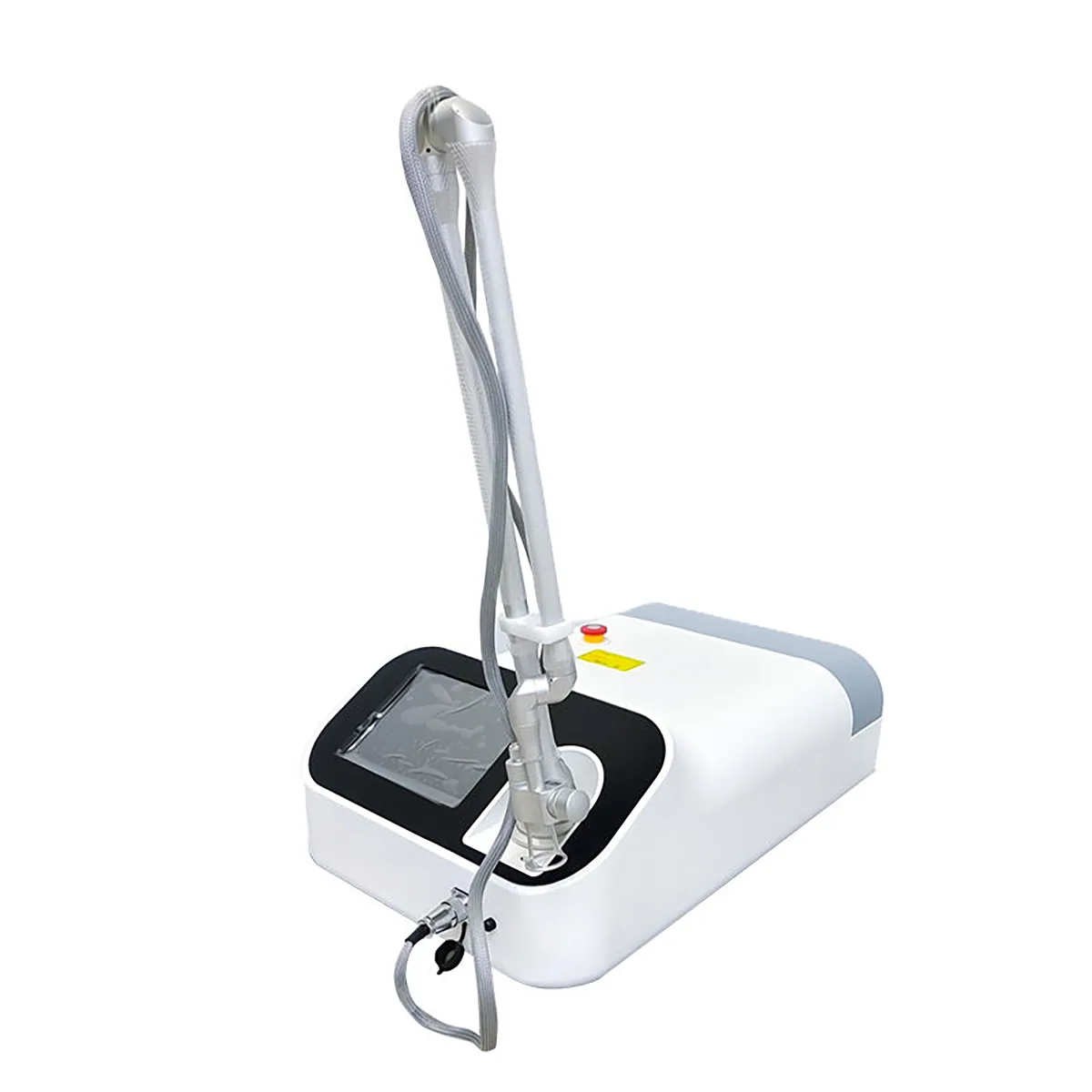

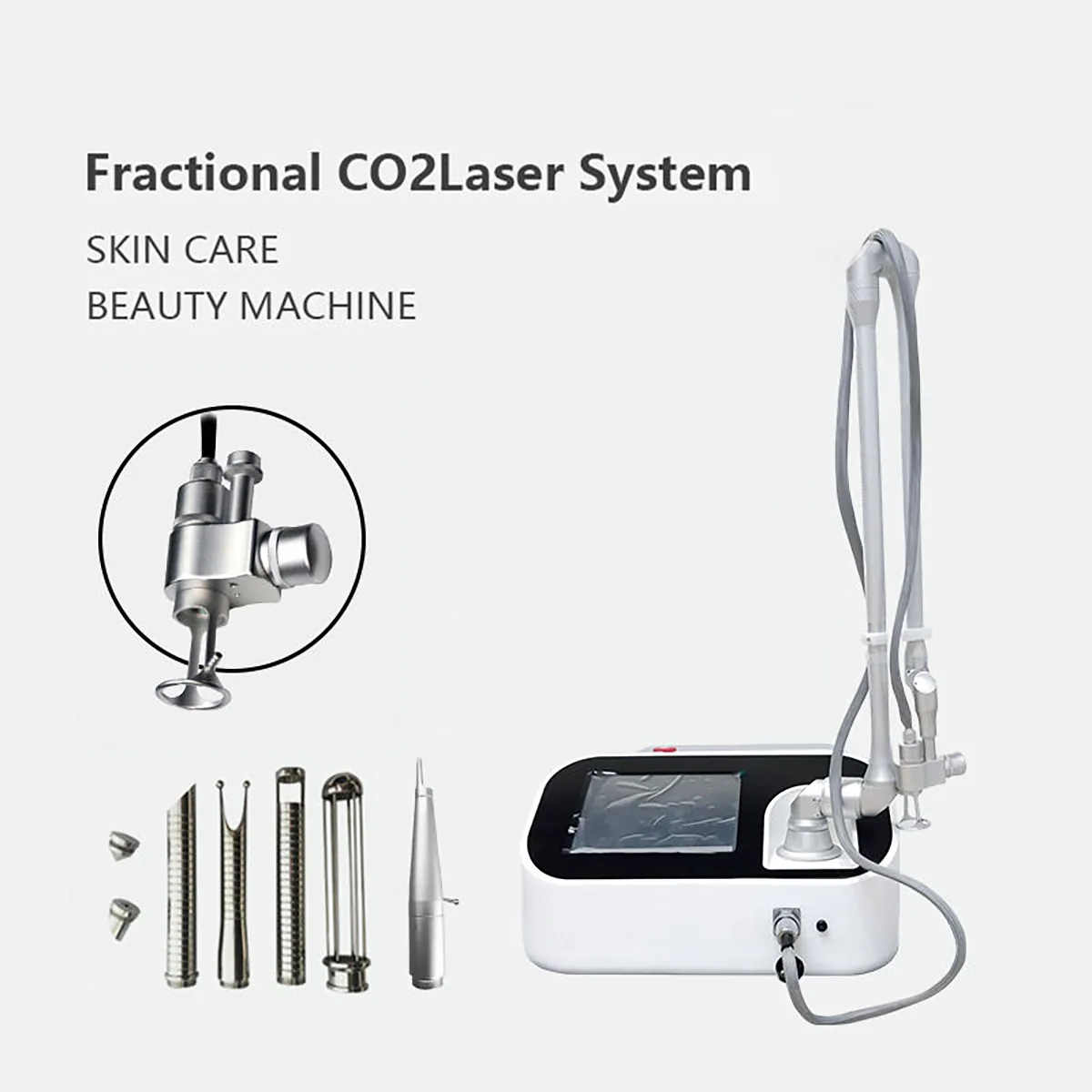

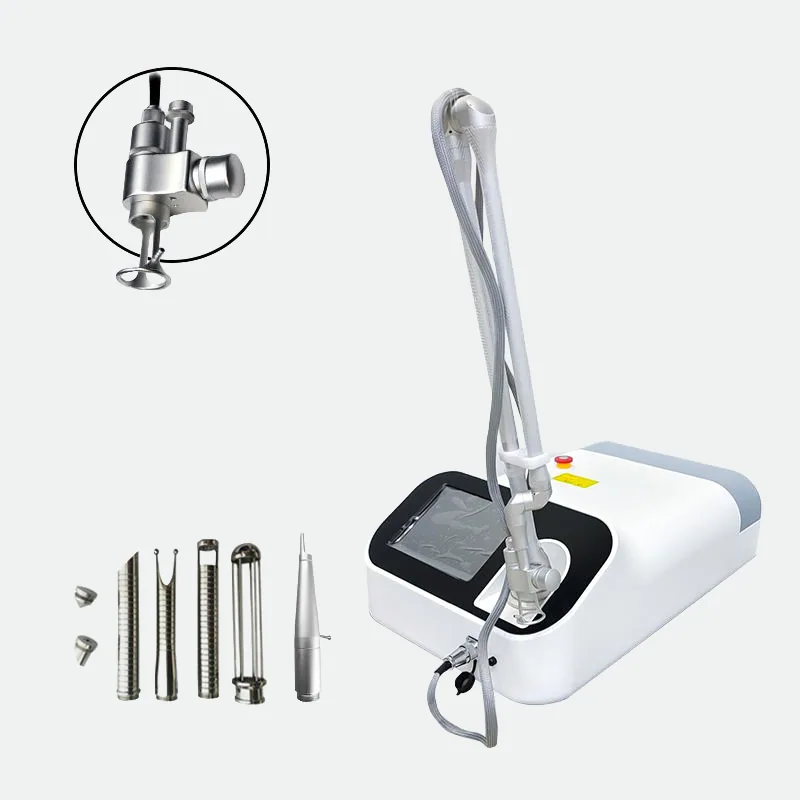

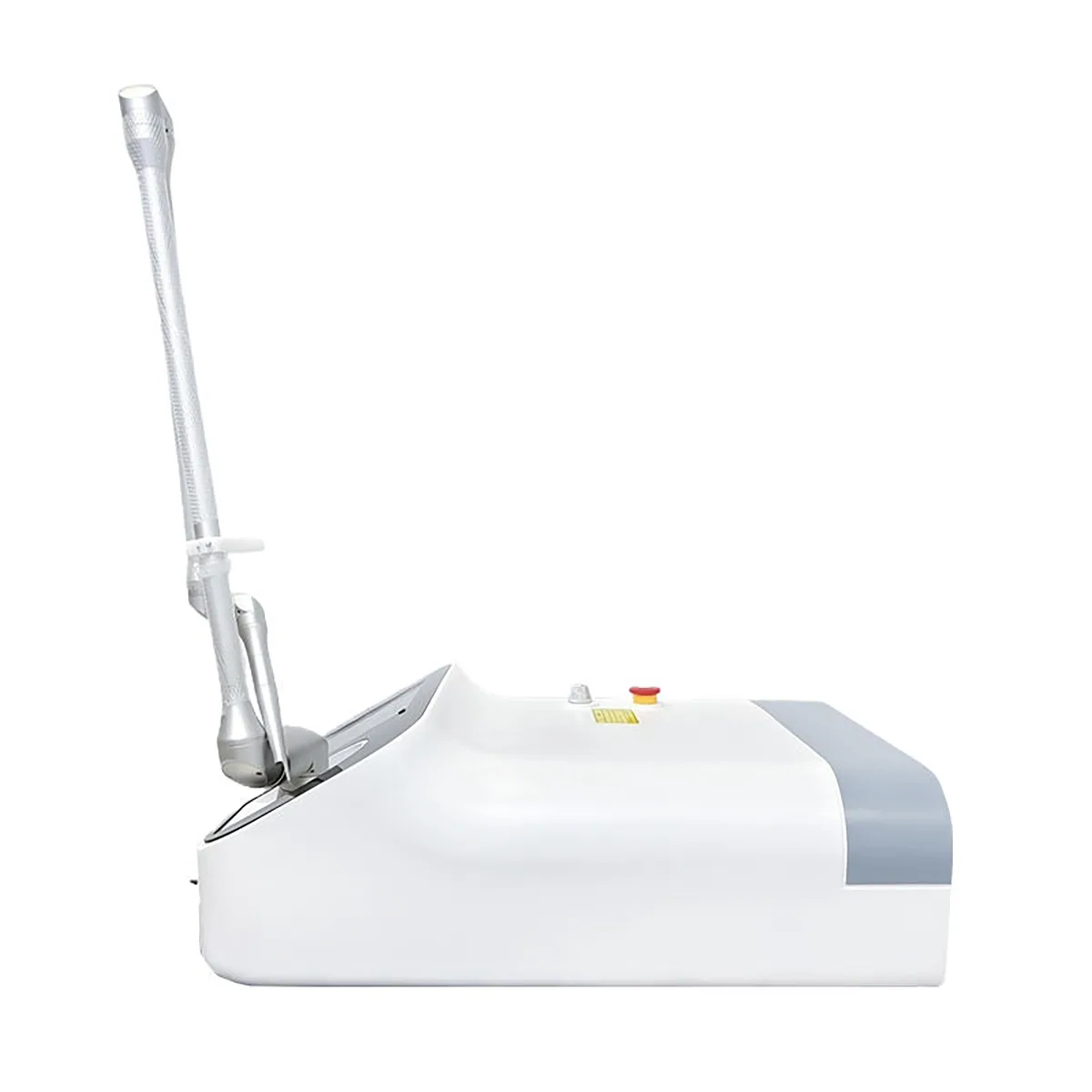

CO2 Fractional Laser System — Intimate Care Applications
CO₂ fractional laser system for intimate care applications — sealed-off DC CO₂ source, 1–60 W output, articulated light guide arm, closed-loop water cooling.
Add this model, keep browsing, and submit every model you are pricing in one enquiry.
| Working principle | Scanning / CO2 |
|---|---|
| Laser type | Sealed-off DC CO2 laser |
| Output energy | 1-60 W (1 W increments) |
| Output mode | Pulse / super pulse / single pulse continuous |
| Scan diameter | Max 20 mm / min 0.1 mm |
| Scan area | Max 20 × 20 mm / min 0.1 × 0.1 mm |
| Aiming light | Red semiconductor indicator light (650 nm) |
| Control system | Microcomputer-controlled large colour touchscreen, menu display |
| Optical transmission | Light guide arm |
| Cooling system | Closed internal circulating water cooling |
| Overall dimensions | 700 × 450 × 940 mm (with light guide arm) |
| Weight | 40 kg |
| Power supply | AC 220V 50/60Hz 10A |
| Warranty | Main unit 1 year |
This device is a professional laser system and must be used by trained operators only.
- Never direct the laser at reflective surfaces — reflected or scattered laser light can cause injury.
- Do not operate in environments containing flammable or explosive materials. Do not place or store flammable or explosive substances — including gasoline, alcohol, certain anaesthetics or solvents — around the device.
- Keep the laser path unobstructed.
Professional use only — for qualified clinics and trained operators. Regulatory status varies by market; buyers are responsible for compliance in their own jurisdiction.
Refer to the product manual for full operating and safety instructions.
| Packaging | 850 × 540 × 400 mm |
|---|---|
| Gross weight | 40 kg |
| Minimum order | 1 unit |
| Lead time | 3–5 working days (stock configuration) |
| HS code | Confirm on quotation |
Included with the unit
Main unit, and the accessories listed in the specification tab.
Supplied separately
Consumables are supplied separately.
Brand it as your own.
OEM work starts from a single unit. We handle logo application, colour matching against your reference, packaging artwork and — for ODM projects — configuration changes to the unit itself.
ODM development typically takes 1–2 months depending on scope. Send us your target market and specification and we will come back with a development plan.
| Logo | Stickers, screen printing |
|---|---|
| Colour | Reference colour matching |

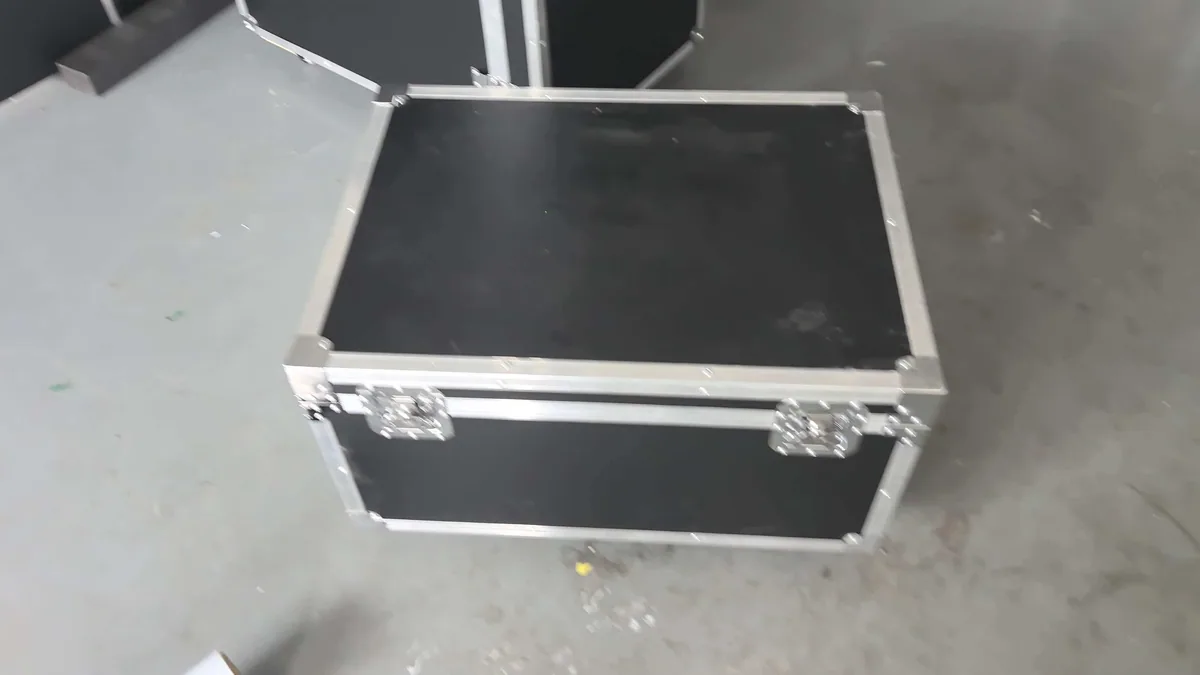

| Packaging | Carton · flight case · wooden case |
| OEM minimum | 1 pc |
| ODM lead time | 1–2 months |
Price this together with consumables.
Tell us how many units you expect and which consumables you will need — we will quote both on one reply.
